Push to Open Catch for Doors and Drawers

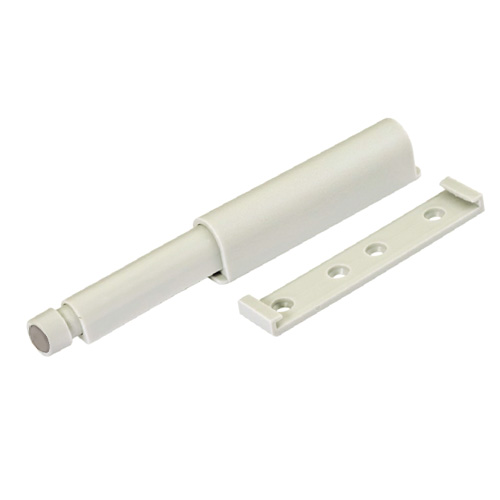

Push to Open Catch for Doors and Drawers - Open Position

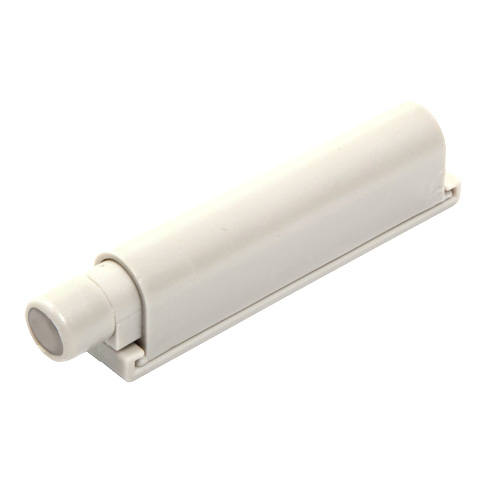

Galvin Push to Open Catch with Adapter - WHITE

Product code: CPUSHOPENWH

A gentle tap on the door or drawer panel, results in the panel opening sufficiently to allow the user to grasp the door or drawer and open it further.

For use with overlay and inset doors
Suitable for all brands of hinges with self closing action
Surface mounted

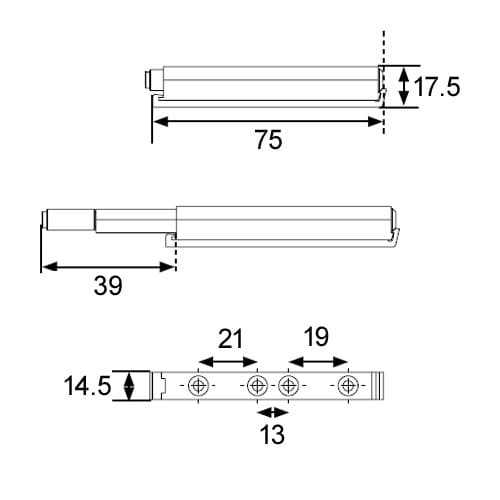

Length: 75mm
Width: 14.5mm
Height: 17.5mm
Throw: 39mm

Availability:

Osborne Park: In stock
Adelaide: Limited stock
Wangara: In stock
Bunbury: In stock

$8.35 each (incl.GST)

Trade customers: login to view pricing

Quantity

Information Brochures & Downloads

Product Information

Installations:

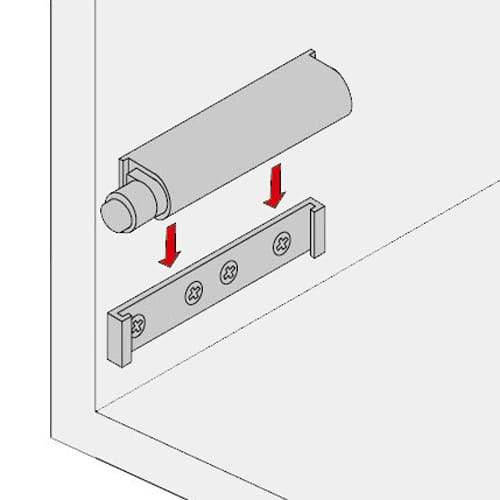

First drill a first hole 16mm from the front edge, then drill the second hole a further 19mm in from the first hole, then drill a third hole another 13mm from the second hole and finally drill a fourth hole 21mm from the third hole. Next fasten the plastic support bracket, with the nib facing the rear of the cupboard, to the cupboard wall using 4 countersunk longthread screws or countersunk self tapping screws M3.5 x 13mm or 6 Gauge x 1/2 inch. Slide the piston assembly with the piston to the door, into the plastic support bracket and centre in the bracket. The soft tip can be adjusted by screwing in or out, to make the door sit flush with surrounding doors.
