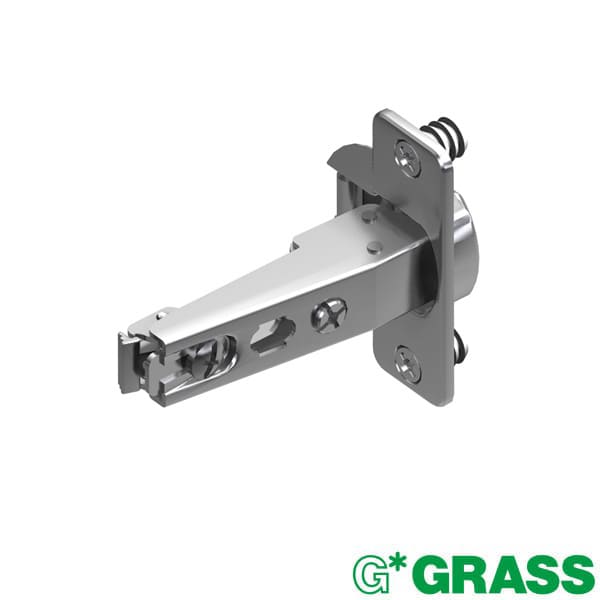

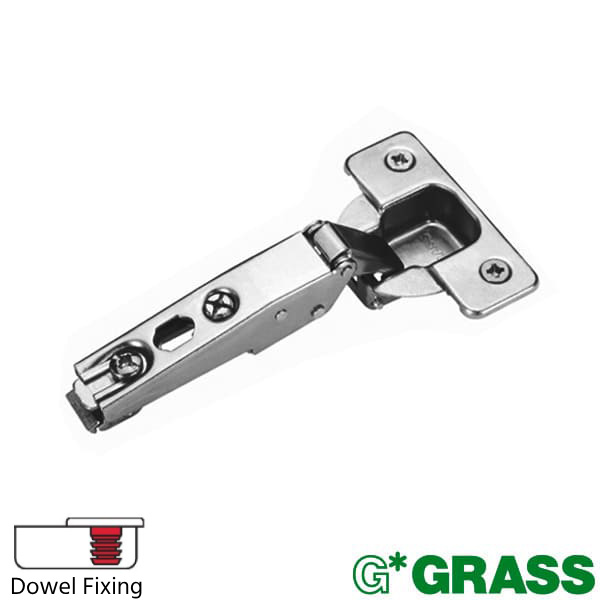

Grass NEXIS 110 Degree Knock-In CABINET HINGE - K0 Full Overlay Hettich Pattern
The versatile NEXIS hinge system offers everything you need to move your doors. Finely tuned movement systems featuring top quality workmanship, functionality and operating comfort.
- 110° Opening Angle

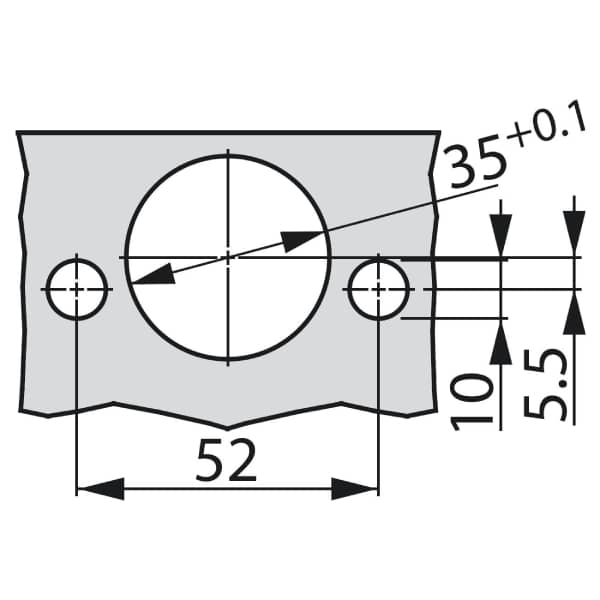

- Drilling Pattern: Hettich 52/5.5
- Knock-In Installation (∅10mm Nylon Dowels)
- Self-Closing (Spring Mechanism)

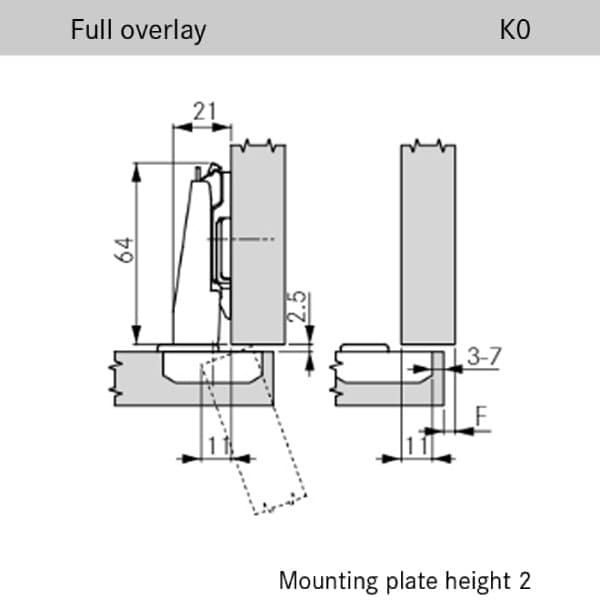

- 0mm Cranking (Full Overlay)
Availability:
- Osborne Park: Back order
- Adelaide: In stock
- Wangara: Special order
- Bunbury: Special order
Product Information
Mounting plates sold separately, see related products below for suitable options.
Unsure on what information you need to know about hinges? Check out our comprehensive information guide available from the Brochures & Downloads section on this page. Additional technical data is also available as well.
