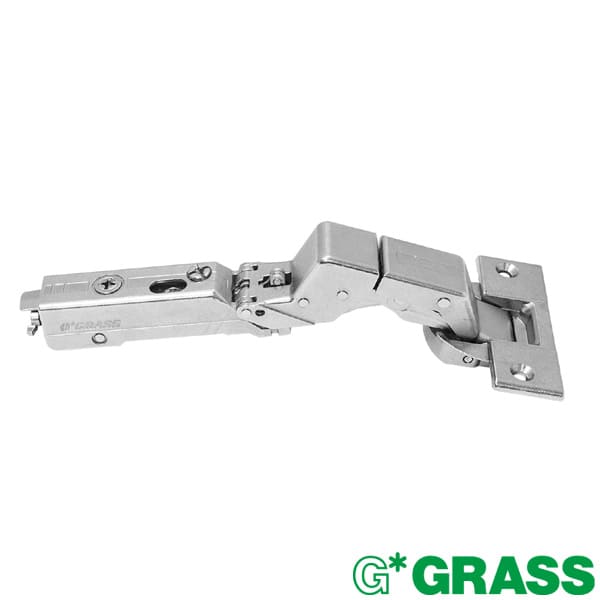

Grass TIOMOS 110 Degree Screw-On Shallow Cup CABINET HINGE - K3 Overlay Blum Pattern [Soft Closing]

  • Product code: F029140338
The Grass Tiomos range of hinges features quality German engineering, smooth movement and easy installation and adjustment.
  • 110° Opening Angle

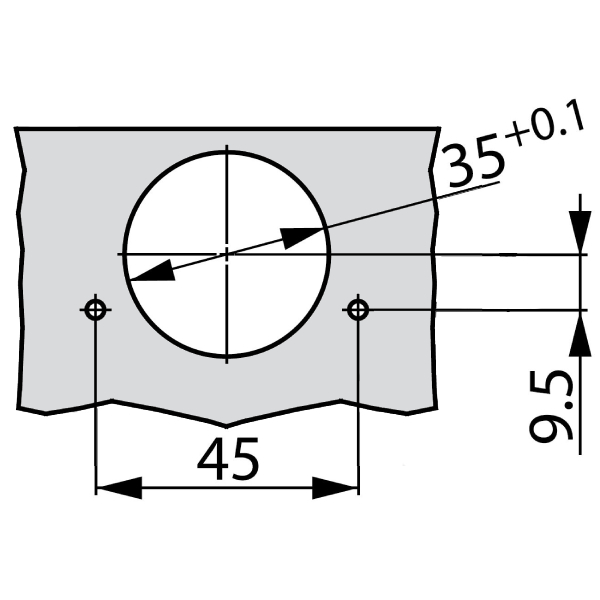

  • Drilling Pattern: Blum 45/9.5

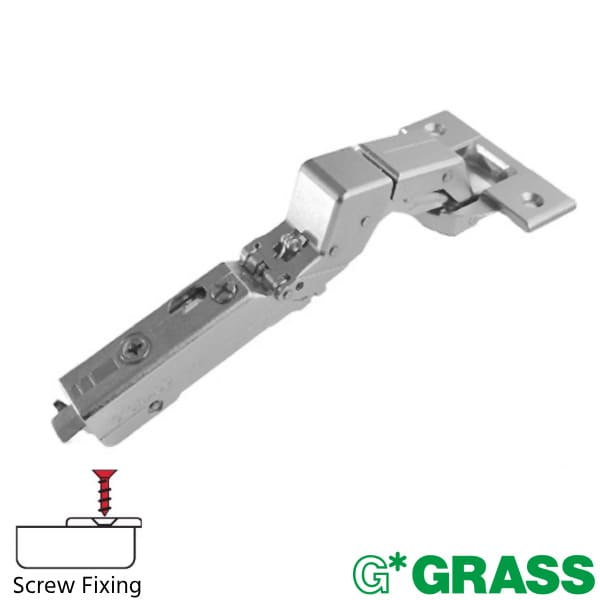

  • Screw-On Installation (Countersunk Holes)
  • Soft-Closing (Integrated Damper)

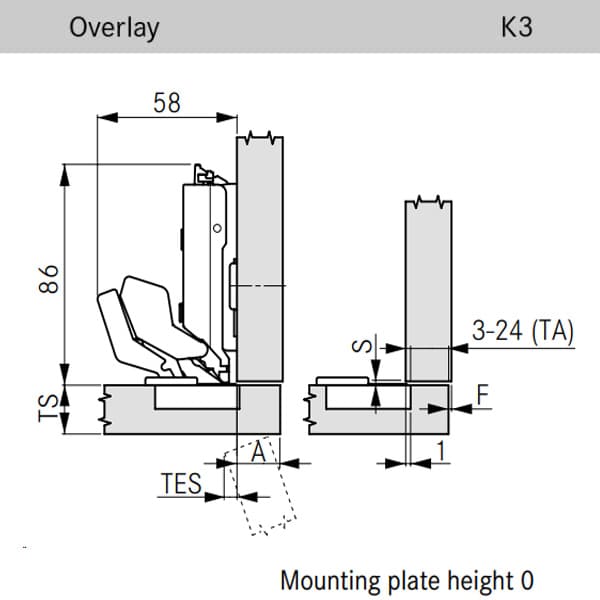

  • 3mm Cranking (Overlay)

Availability:

  • Osborne Park: Back order
  • Adelaide: Back order
  • Wangara: Back order
  • Bunbury: Special order
$41.30 each (incl.GST)
Trade customers: login to view pricing
Information Brochures & Downloads

Product Information

Mounting plates sold separately, see related products below for suitable options.

Unsure on what information you need to know about hinges? Check out our comprehensive information guide available from the Brochures & Downloads section on this page. Additional technical data is also available as well.

Additional Features
  • Optimal reveals for door thicknesses up to 28mm.
  • Cup Drilling Depth: 9mm
  • 3 Dimensional Adjustment (when using suitable mounting plate)
  • Material: Nickel-Plated Steel
  • Manufacturer's part number: F029140338
