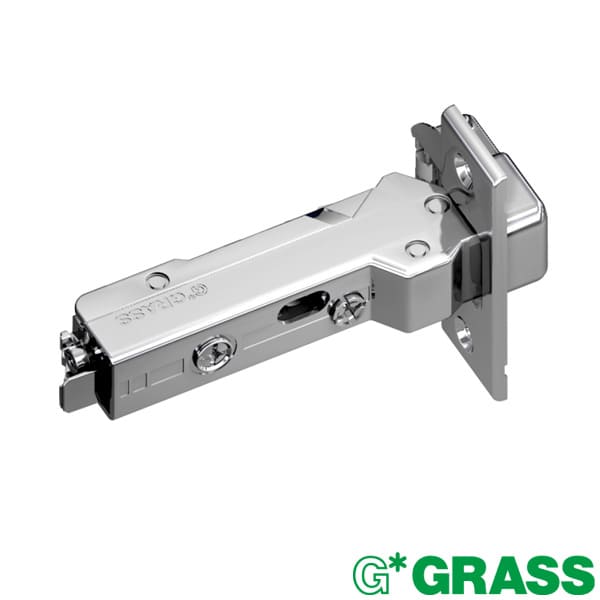

Grass Tiomos 110 Degree Full Half Overlay Cabinet Hinge Screw On - Open Position

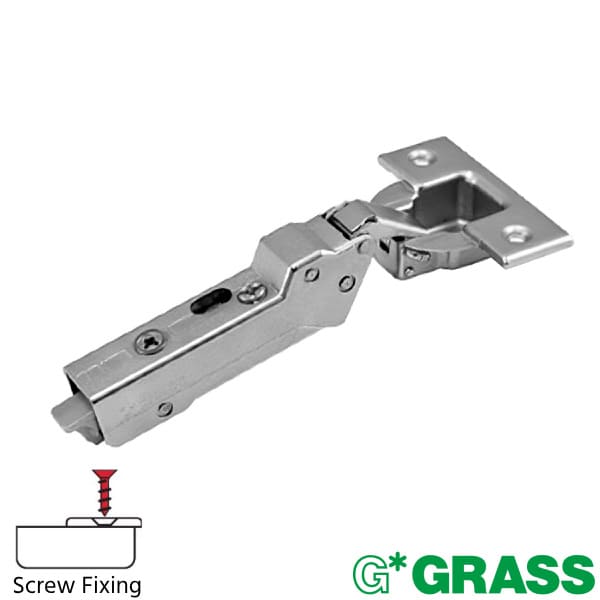

Grass Tiomos 110 Degree Full Half Overlay Cabinet Hinge Screw On - Closed Position

Hinge Drilling Pattern Screw-On Blum 45/9.5

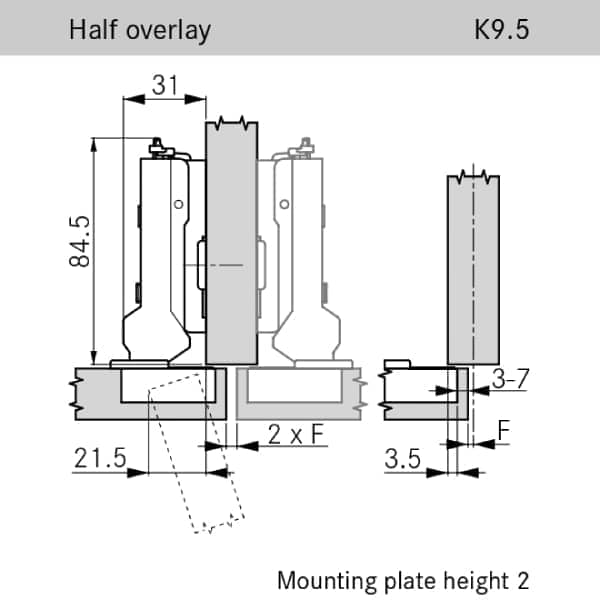

Grass Tiomos 110 Degree K9.5 Half Overlay Hinge Dimensions

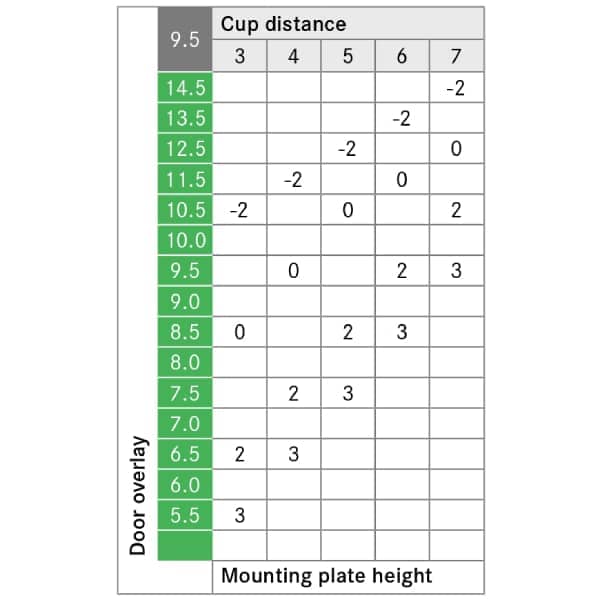

Grass Tiomos 110 Degree K9.5 Hinge Overlay Chart

Grass Tiomos 110 Degree Minimum Reveal Chart

Grass Tiomos 110 Degree Minimum Gap Chart

Grass TIOMOS 110 Degree Screw-On Unsprung CABINET HINGE - K9.5 Half Overlay Blum Pattern [Non Soft Closing]

Product code: F046138581

The Grass Tiomos range of hinges features quality German engineering, smooth movement and easy installation and adjustment.

110° Opening Angle
Drilling Pattern: Blum 45/9.5 (6064 B)
Screw-On Installation (Countersunk Holes)
Unsprung (No Self-Closing Mechanism)
9.5mm Cranking (Half Overlay)

Availability:

Osborne Park: In stock
Adelaide: Special order
Wangara: Special order
Bunbury: Special order

$9.80 each (incl.GST)

Trade customers: login to view pricing

Quantity

Information Brochures & Downloads

Product Information

Mounting plates sold separately, see related products below for suitable options.

Unsure on what information you need to know about hinges? Check out our comprehensive information guide available from the Brochures & Downloads section on this page. Additional technical data is also available as well.
