Hettich INTERMAT 95 degree Glass Door Hinge - 9904 Overlay

  • Product code: H072960

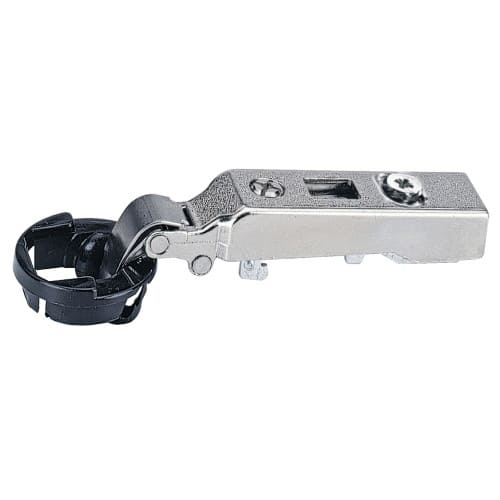

The Intermat 9904 is a self-closing hinge with clip-on system and designed for glass cabinet doors with thicknesses of 4 - 6.5mm.
  • 95° Opening Angle
  • Self-Closing

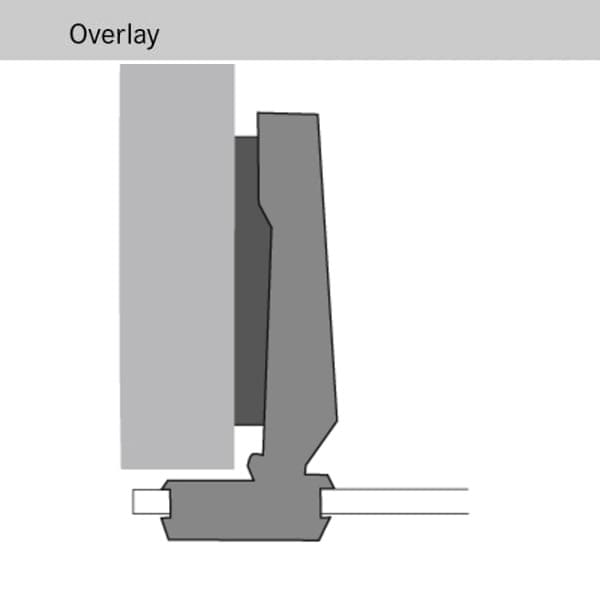

  • 1mm Cranking (Overlay)
  • For glass doors of 4mm to 6.5mm thickness

Availability:

  • Osborne Park: In stock
  • Adelaide: Special order
  • Wangara: Special order
  • Bunbury: Special order
$19.50 each (incl.GST)
Trade customers: login to view pricing

Product Information

Mounting plates sold separately, see related products below for suitable options.

Requires decorative cover plates to complete installation

Additional Features

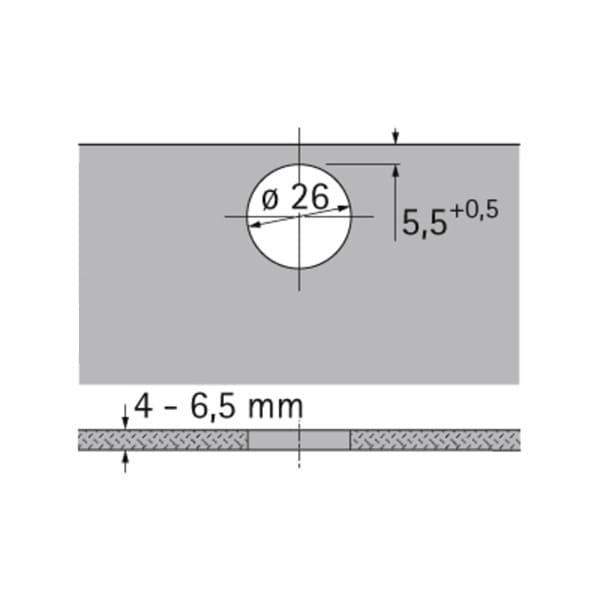

  • Cup diameter 26mm

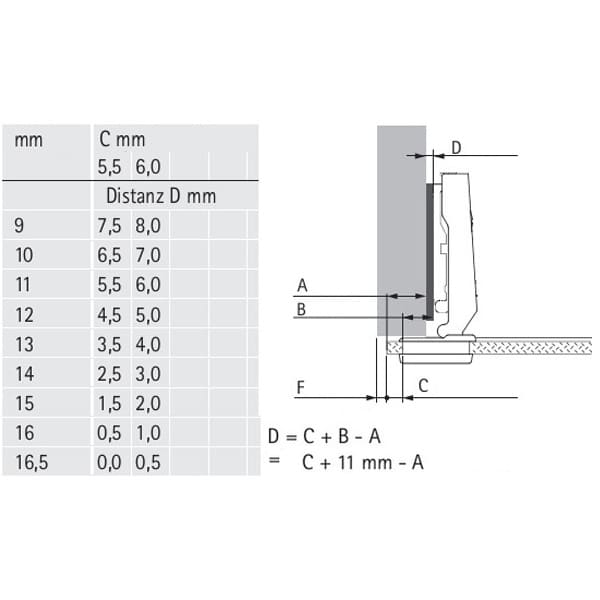

  • Integrated overlay adjustment 1mm / - 2.5mm
  • Integrated depth adjustment 4mm
  • Height adjustment at mounting plate
  • Material: Zinc, die-cast nickel-plated
  • Brochures & Downloads
