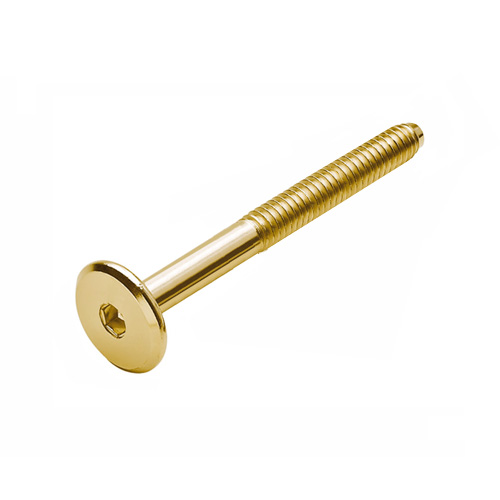

Joint Connecting Bolt M6 x 60mm - ELECTRO BRASS
Connector Nuts and Bolts are used for joining any two parts or pieces together, with a finished appearance. Most commonly used to join panels together, such as cabinets, book cases, and other furniture fixtures.
- Base Material: Steel
- Overall Length: 32.4mm
- Machine Thread Length: 27mm
- Head Diameter: 17mm
- Head Thickness: 2.3mm
- Metric Hex Drive: 4mm
Availability:
- Osborne Park: In stock
- Adelaide: Special order
- Wangara: In stock
- Bunbury: In stock
Product Information
Application: Hex drive furniture joint connector bolts are small but effective. When used in combination with the bolt they give a tight connection and an identical head on both sides of the joint.
Method: Pre-drill the pilot hole between the two surfaces to be joined. Insert the sleave into one side and tighten with the hex head on the other side.
