Pocket Sliding Door Fitting Set 500mm - KA5740

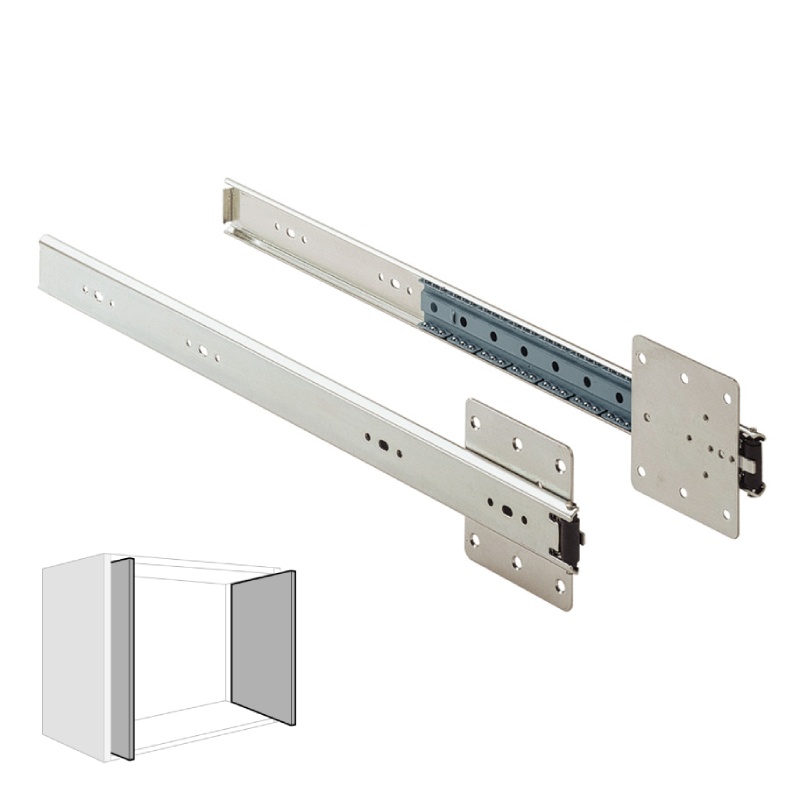

The KA5740 pocket sliding door system is for doors that slide out of sight into the cabinet, positioned parallel to the cabinet sides. This system features smooth action and high side stability through precision slide.

• Maximum door weight: 14kg
• Maximum door height: 1800mm
• Maximum door thickness: 22.5mm or 32mm
• With roll-out locating catch
• Finish: Chromated Steel
• Packaging: per set

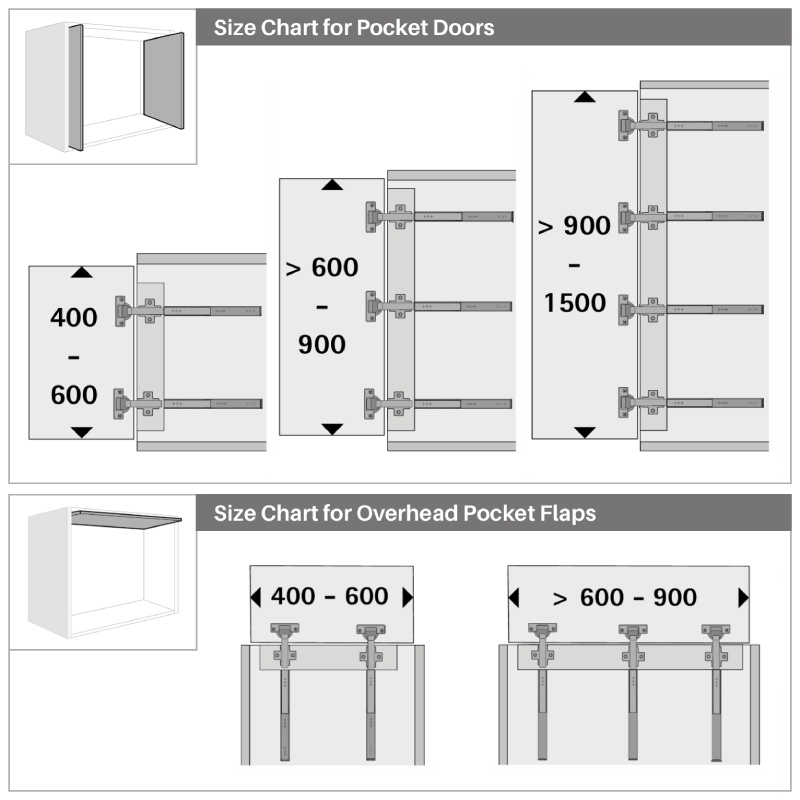

The recommended quantity of slide fittings per door is dependent on the door height.

• 0mm - 600mm: 2 Slides
• 600mm - 900mm: 3 Slides
• 900mm - 1800mm: 4 Slides

Note: Hinges and accessories sold separately. For the recommended hardware to suit this system, please see the complementary products below.

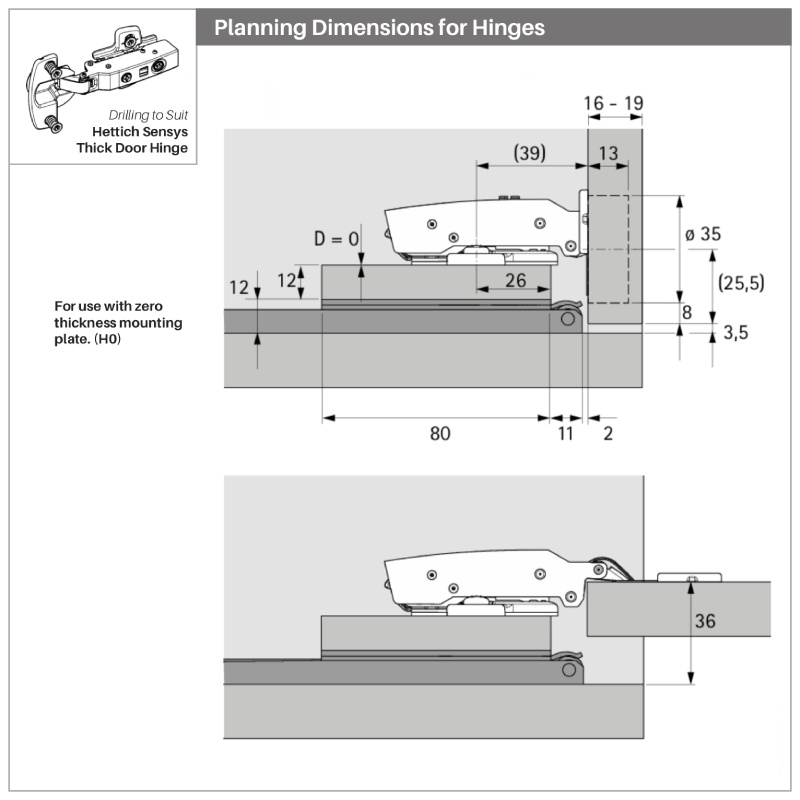

• 95° Sensys Thick Door Hinge
• 0mm Intermat Hinge Mounting Plate
• Accessory Set for Lift Up Flaps
