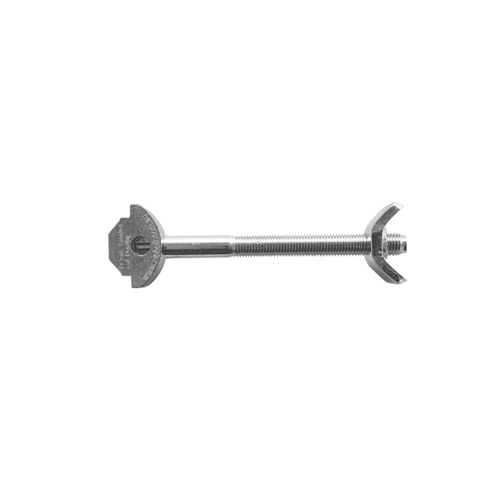

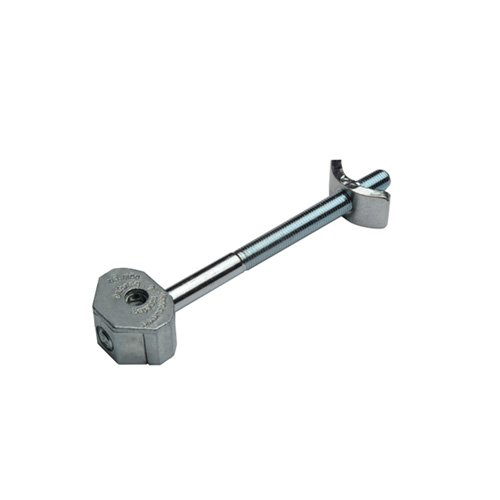

ZIPBOLT Mini Benchtop Connector 90mm for 25mm Tops

Product code: ZIPBOLTMINI

Zipbolt uses the latest design in benchtop connector and is the fastest and easiest way of joining work or counter tops in a matter of seconds! The all metal Zipbolts have a diecast gear housing are more durable and are able to achieve even higher torque levels than previously.

Tighten with 4mm Hex Bit
Steel bodies and connecting bolts
Saves time in assembly work
Diecast gear housing

Availability:

Osborne Park: In stock
Adelaide: Special order
Wangara: Special order
Bunbury: Special order

$2.50 each (incl.GST)

Trade customers: login to view pricing

Quantity

Information Brochures & Downloads

Product Information

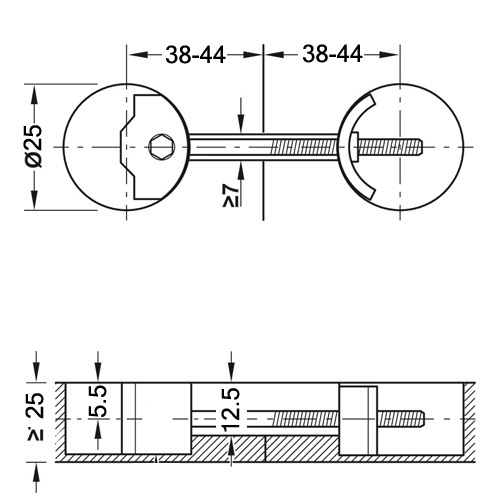

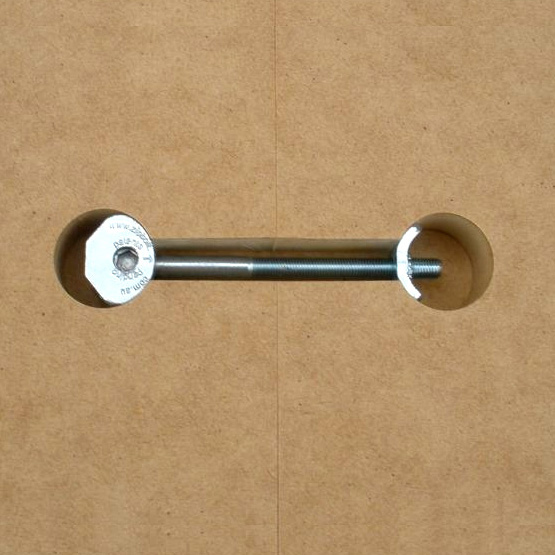

Application: Pass screw shaft through edge of board then place curved end plate into a 25mm diameter hole and engage screw shaft turning anticlockwise. Next slide second board onto the screw shaft and place the gear housing into position. Finally use a 4mm Hex bit in power tool on low torque setting to tighten the connector.
