Corna RH39 Bifold Door Protector Dimensions

Corna RH39 Bifold Door Protector Fitting Detail

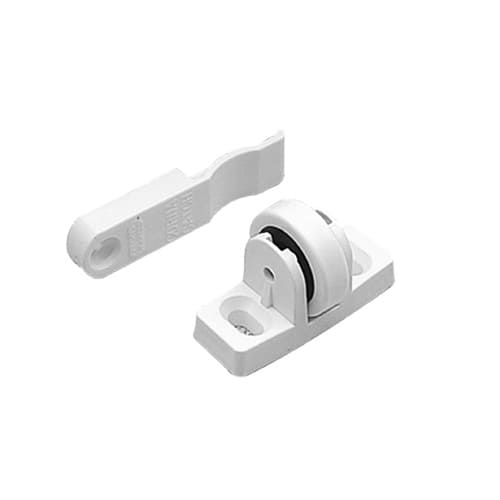

CORNA Side Mount Support Catch & Roller RH39

Product code: CORNRH39

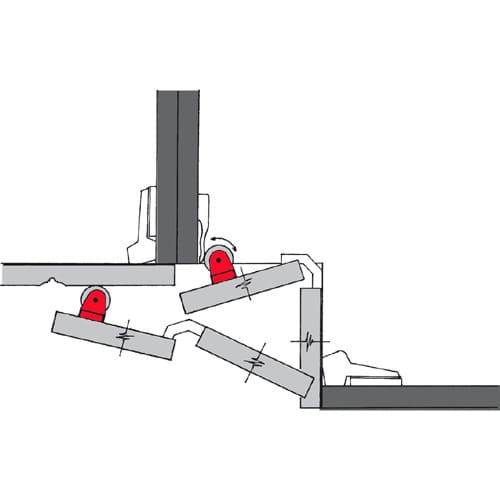

Catch to prevent dropping of bi-fold corner doors and damage due to dropping and accidental misuse. A catch, aligner and protector. Suits standard two door corner units.

Catch / Aligner / Protector
Stops Dropping
Stops Scratching
Stops Edge Damage
Strong pull-in helps to remove twisting in tall doors

Availability:

Osborne Park: In stock
Adelaide: In stock
Wangara: In stock
Bunbury: In stock

$6.90 each (incl.GST)

Trade customers: login to view pricing

Quantity

Information Brochures & Downloads

Product Information

Installation

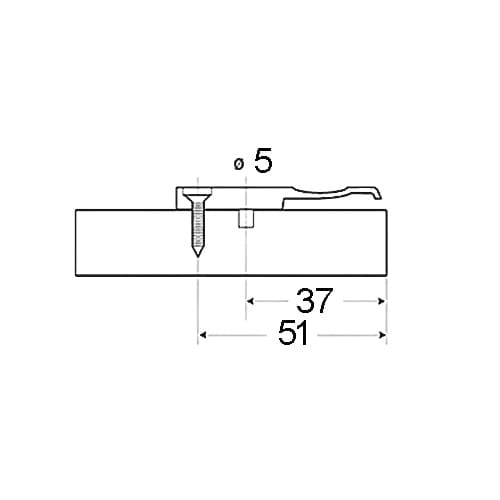

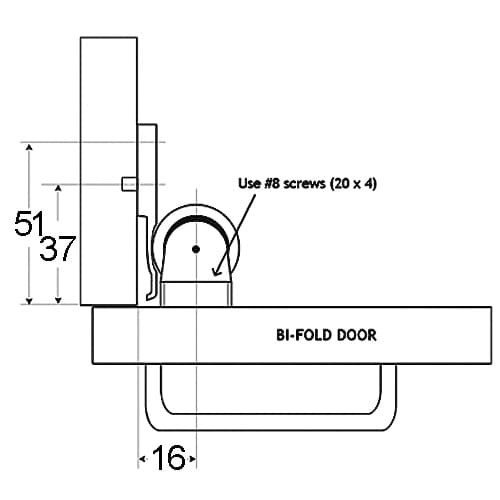

Face frame friendly with keeper adaptor plate. This catch is for standard two door corner units. The catch keeper has a 5mm diameter pin which locates into a system 32 hole directly behind the location of the door handle but towards the top of the door on overhead cupboards. The wheel bracket fits to the back of the door as detailed in drawing.
