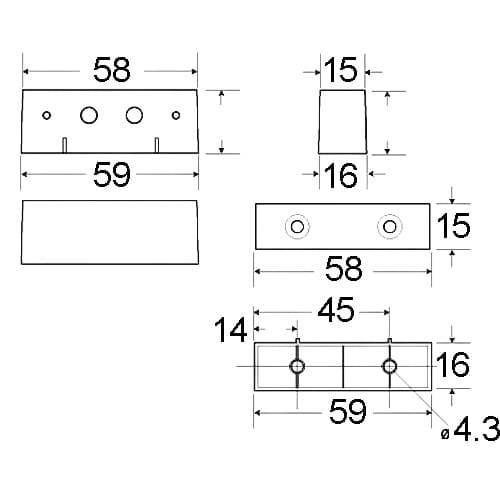

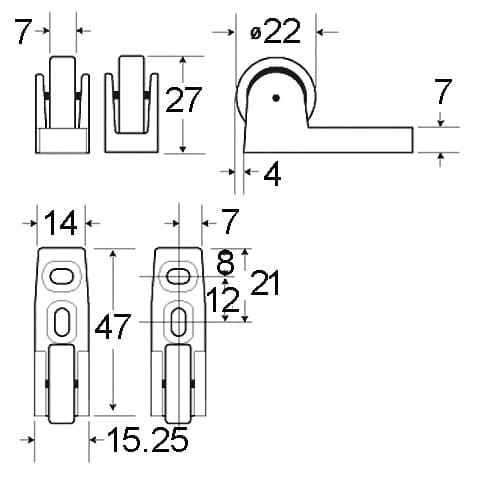

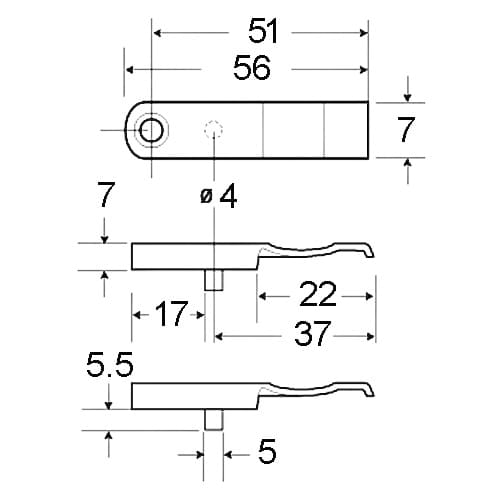

Corna CRTH4 Bifold Door Protector Dimensions

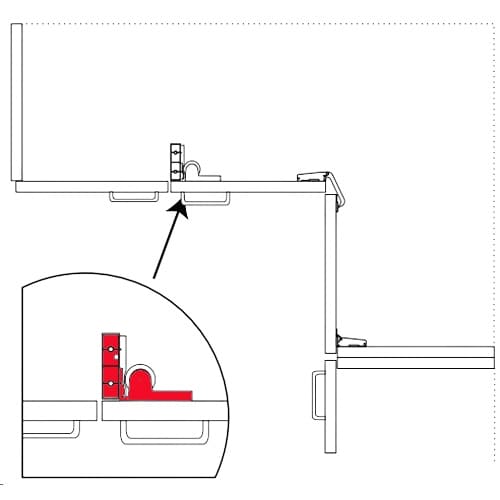

Corna CRTH4 Bifold Door Protector Fitting Detail

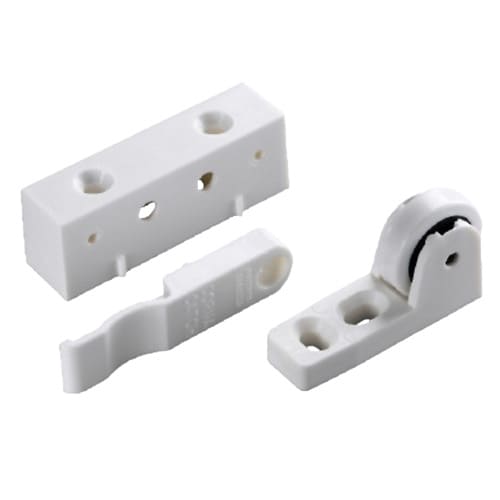

CORNA Top Mount Support Catch & Roller CRTH4

Product code: CORNRTH4

Catch for three door extended corner units. Also an excellent shelf mounted catch for removing bowing and twisting from tall doors. Unique design gives a smooth action with strong pull-in from 6mm.

Catch / Aligner / Protector
Stops Dropping
Stops Scratching
Stops edge damage
Strong pull-in helps to remove twisting in tall doors

Availability:

Osborne Park: In stock
Adelaide: In stock
Wangara: In stock
Bunbury: In stock

$10.15 each (incl.GST)

Trade customers: login to view pricing

Quantity

Information Brochures & Downloads

Product Information

Installation

This catch is for L shaped extended 3 door corner units having two doors on one face and one on the other. These are ideal for breakfast bar returns etc., which reduce the cost of adding a small module to a standard corner unit. In this situation there may not exist a mounting situation for the side mounts keeper.

In this situation, the Top Mounting Support Catch keeper fixes to the mounting block, which is in turn fixed to the top of the cabinet. It suits both left and right hand applications.

This catch can be used in any other application as it can be mounted below any cabinet top or shelf whenever a strong but smooth action catch is required particularly when it is necessary to add a catch to taller doors for extra pull-in which can not be achieved by self closing hinges alone.
